PS1500 Telescopic Loader
PS1500 Telescopic Loader is a PINSHENG-branded telescopic loader built to PINSHENG specification and supplied from Jining, Shandong. Key specifications: Operating weight 4200 · Rated power 42 · Rated load 1500kg (including attachment or bucket) · Capacity 0.65 · Overall dimensions LxWxH:5900x1800x2710. Machine configuration, optional attachments, emission specification, and export documentation are confirmed with the buyer before shipment.
- Reference price
- Contact for price
- Minimum order
- 1 set
- Lead time
- On request
- Supplier response
- Quick responder
SPECIFICATIONS
Technical data
| Bucket Capacity | 0.65 | m³ |
|---|---|---|
| Operating Weight | 4200 | kg |
| Bucket Width | 1600 | mm |
| Bucket type | Heavy-duty bolt on teeth | |
| Rated Load | 1500kg (including attachment or bucket) | kg |
| Wheel base | 2355 | mm |
| Track | 1400 | mm |
| Driving Mode | Hydraulic converter, four wheel drive | |
| Overall Dimensions | LxWxH:5900x1800x2710 | mm |
| Lifting to bucket hinge pin Height | 4200 | mm |
| Model | YUNNEI YN27 Engine | |
| Engine Type | In-line arrangement, water-cooled, four-cycle diesel,turbocharged Engine | |
| Rated Power | 42 | kw |
| Rated Speed | r/p.min | rpm |
| Optional Engine | XINCHAI / YANMAR | |
| Steering System | Articulated Frame with hydraulic power steering | |
| Min Turning Radius | 4700 | mm |
| Driving System | Hydraulic converter, four wheel drive | |
| Service Brake | Safer air assist disc brake braking system | |
| Parking Brake | Hand operated（Disc brakes） | |
| Model: | 23.5/70-16 | |
| Width | 330 | mm |
| Diameter | 920 | mm |
| Optional Model | 12-16.5 / 31X15.5-15 |
PRODUCT DETAIL

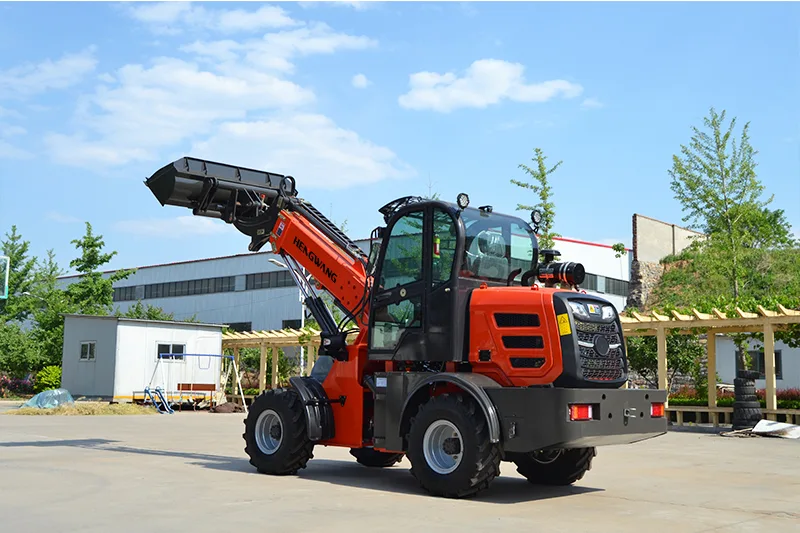

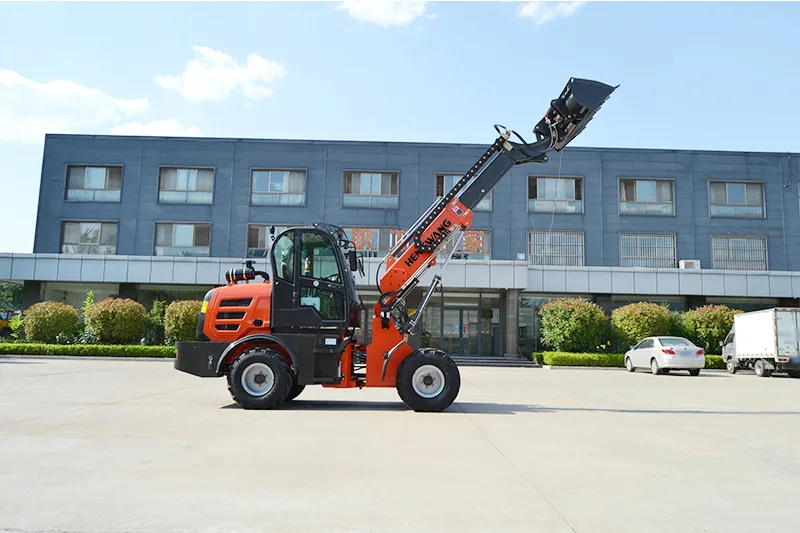

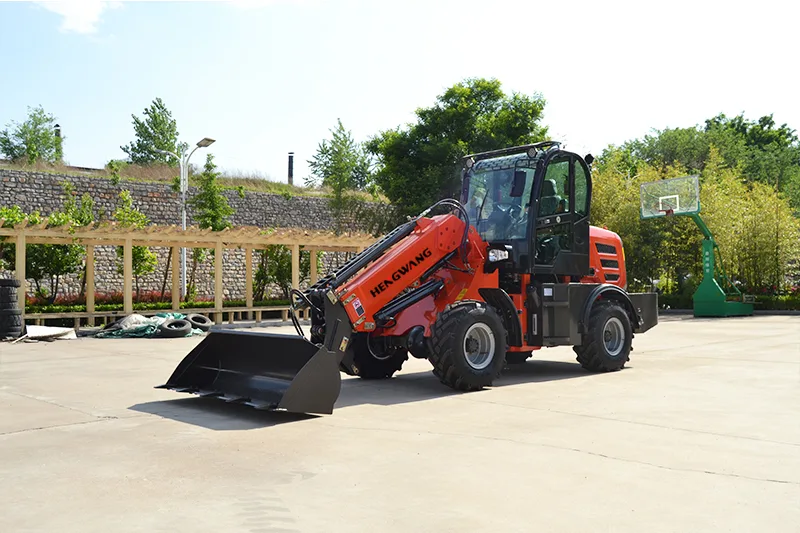

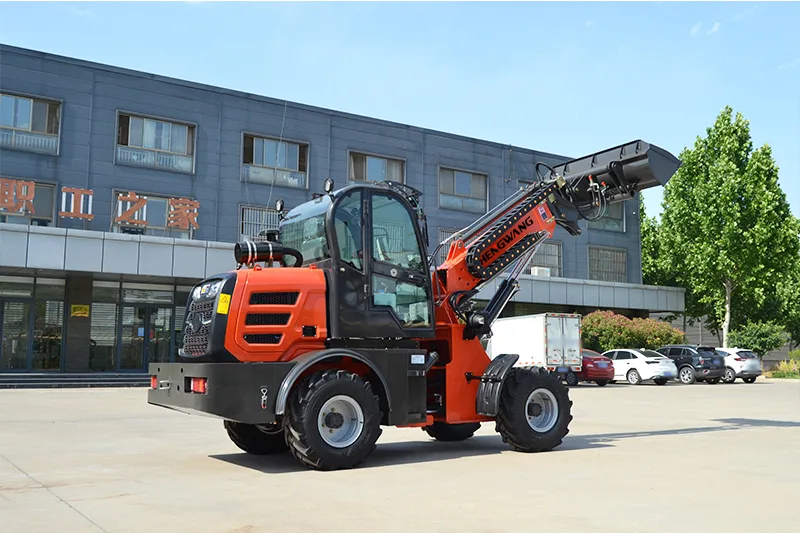

Detailed views
JI
SUPPLIED BY
Jining Pinsheng Machinery Manufacturing Co., Ltd.
Jining, Shandong, China · Custom Manufacturer
Public business profileCapacity on request
View supplier profileBUYER QUESTIONS
PS1500 Telescopic Loader — buyer questions
What is the minimum order quantity for PS1500 Telescopic Loader?
The minimum order quantity for PS1500 Telescopic Loader is 1 set. Jining Pinsheng Machinery confirms the final quantity, packing, and unit price when quoting an order.
Who supplies PS1500 Telescopic Loader?
PS1500 Telescopic Loader is supplied by Jining Pinsheng Machinery Manufacturing Co., Ltd., a custom manufacturer based in Jining, Shandong, China, established in 2016.
What is the lead time for PS1500 Telescopic Loader?
Jining Pinsheng Machinery quotes the lead time for PS1500 Telescopic Loader per order, because it depends on configuration, quantity, and destination. Send a structured inquiry with your quantity and target date to get a committed date.
How much does PS1500 Telescopic Loader cost?
Jining Pinsheng Machinery does not publish a list price for PS1500 Telescopic Loader. Price depends on configuration, order quantity against the 1 set minimum, trade term, and destination port, and is quoted on inquiry.
Does Jining Pinsheng Machinery export PS1500 Telescopic Loader?
Jining Pinsheng Machinery states export coverage of Worldwide, with sales support in English. Export documentation and packing are confirmed with the buyer before shipment.
