PS388 Backhoe Loader
PS388 Backhoe Loader is a PINSHENG-branded backhoe loader built to PINSHENG specification and supplied from Jining, Shandong. Key specifications: Operating weight 7400/8400 · Rated power 85 · Engine Yuchai4105Turbocharger · Rated load 2800 · Capacity 0.3 · Overall dimensions 6150*2350*3763 · Lifting height 5200/5950. Machine configuration, optional attachments, emission specification, and export documentation are confirmed with the buyer before shipment.
- Reference price
- Contact for price
- Minimum order
- 1 set
- Lead time
- On request
- Supplier response
- Quick responder
SPECIFICATIONS
Technical data
| Model | PS-388 | |
|---|---|---|
| Dimensions | 6150*2350*3763 | mm |
| Wheelbase | 2200 | mm |
| Tread | 1850/2000 | mm |
| Minimum ground clearance | 300 | mm |
| Minimum turning radius | 6580 | mm |
| System pressure | 28 | Mpa |
| Machine weight | 7400/8400 | kg |
| Maximum vehicle speed | 38 | Km/h |
| Maximum gradeability | 35 | " |
| Maximum telescopicdigging depth | 4000/5200 | mm |
| Maximum digging radius | 4800/6000 | mm |
| Maximum lifting height | 5200/5950 | mm |
| Bucket capacity | 0.3 | m3 |
| Maximum digging force | 36 | KN |
| Maximum digging radius of bucket m | 840 | |
| Excavator rotation angle | 190 | " |
| Maximum unloading height | 2742 | mm |
| Maximum unloading distance | 1062 | mm |
| Rated load | 2800 | Kg |
| Break force | 72 | KN |
| Engine model | Yuchai4105Turbocharger | |
| Rated power | 85 | KW |
| Rated speed | 2600 | r/min |
| Number of cylinders-bore diameter | 4-105 | |
| Fuel tank | 100 | L |
| Hydraulic oil tank | 100 | L |
| Drive type | Four-wheel drive\ |
PRODUCT DETAIL

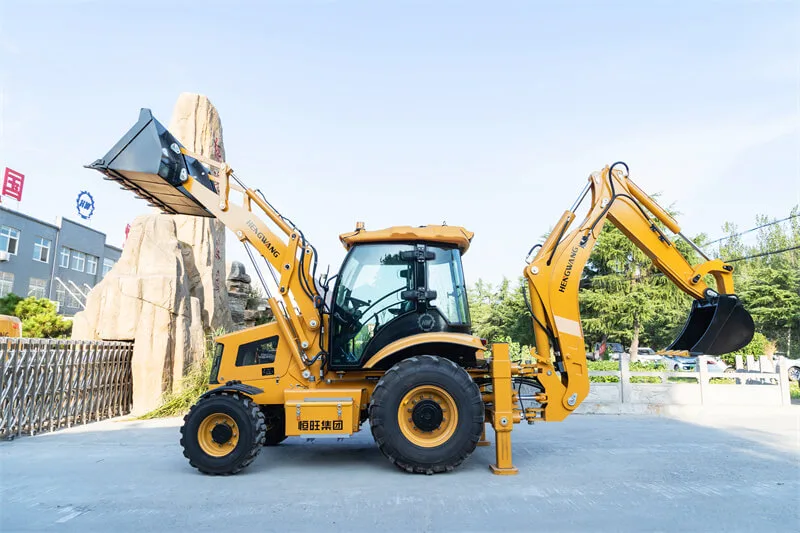

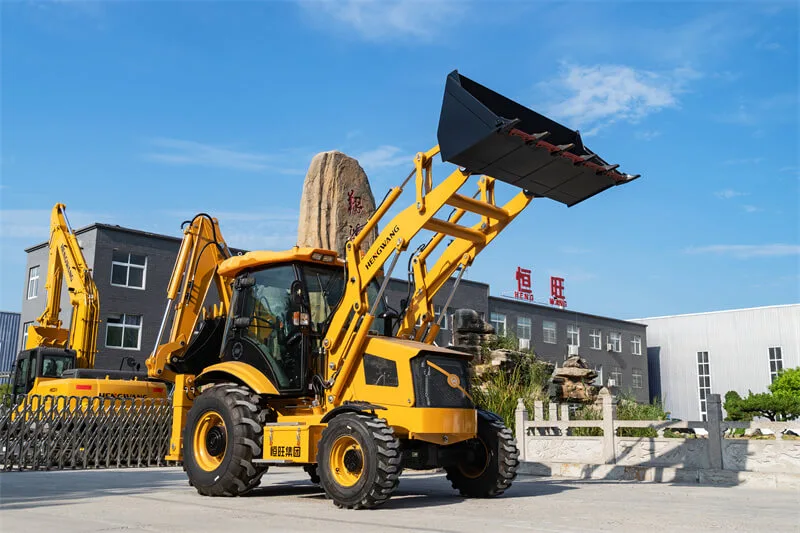

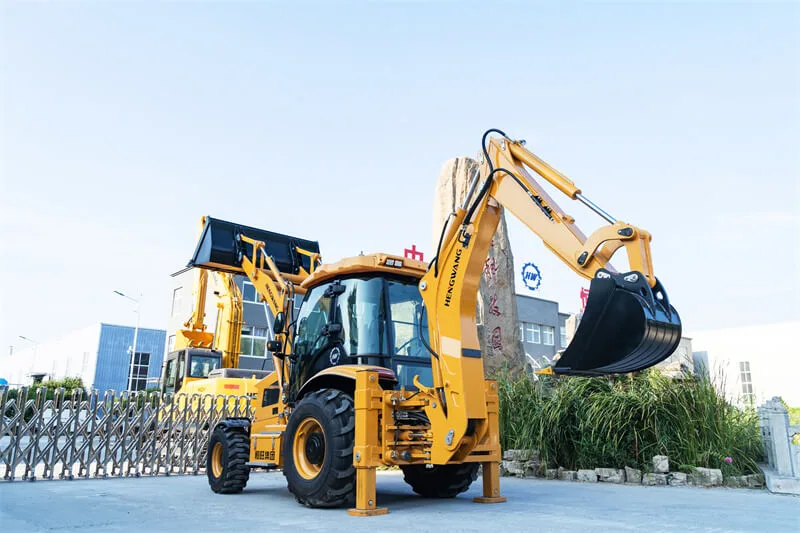

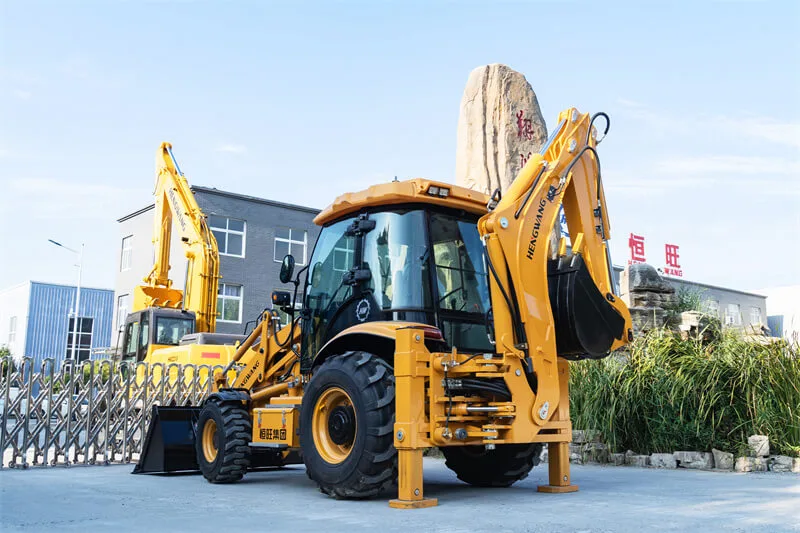

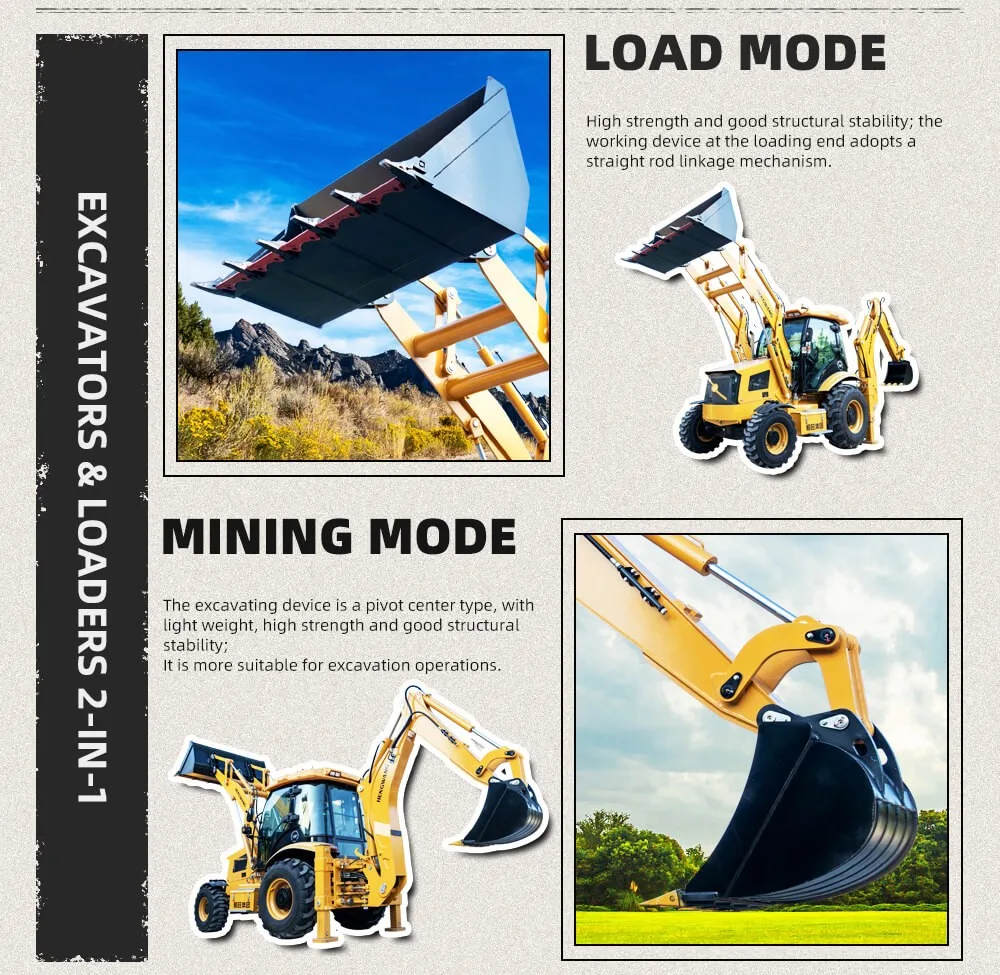

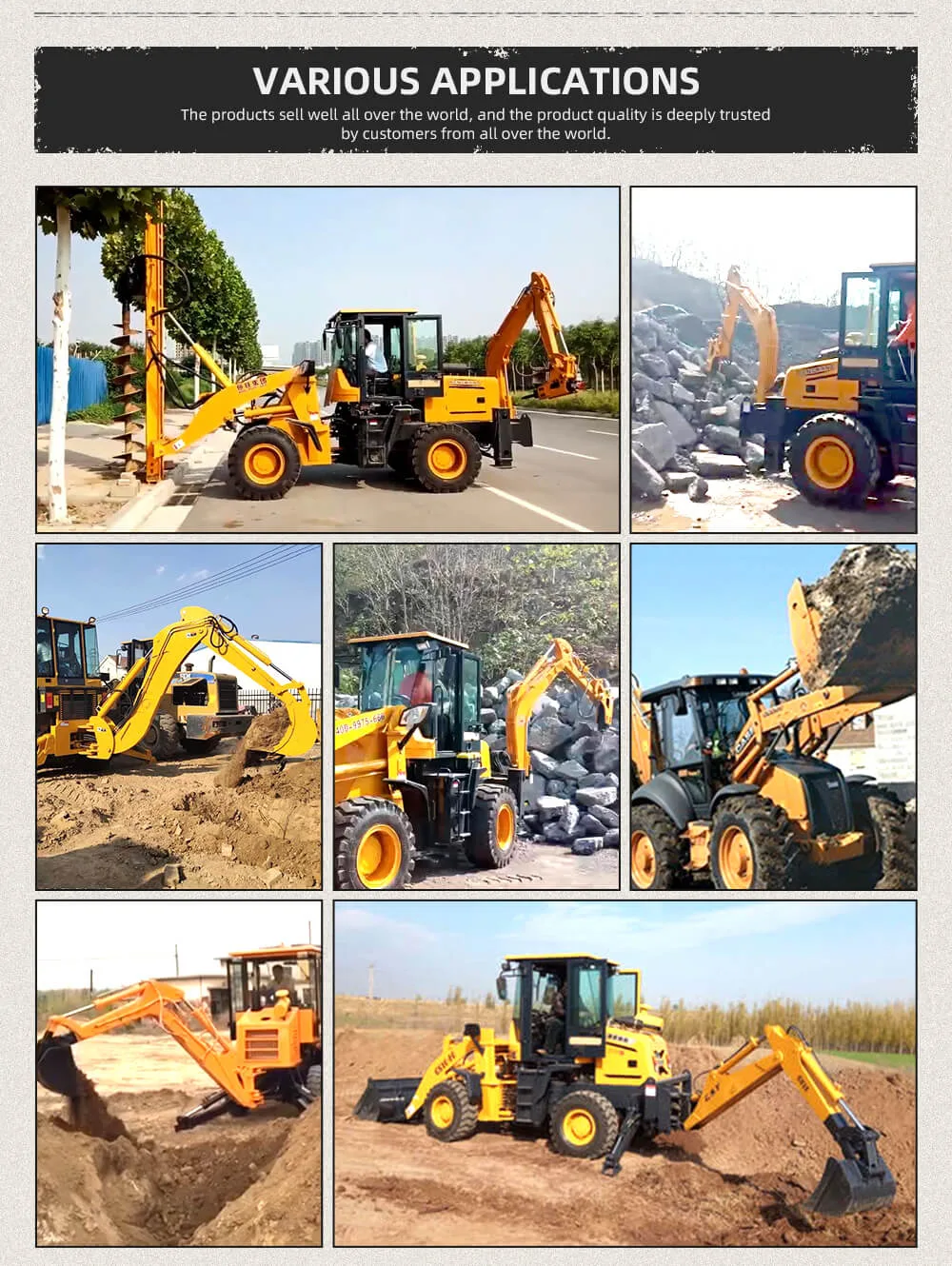

Detailed views
JI
SUPPLIED BY
Jining Pinsheng Machinery Manufacturing Co., Ltd.
Jining, Shandong, China · Custom Manufacturer
Public business profileCapacity on request
View supplier profileBUYER QUESTIONS
PS388 Backhoe Loader — buyer questions
What is the minimum order quantity for PS388 Backhoe Loader?
The minimum order quantity for PS388 Backhoe Loader is 1 set. Jining Pinsheng Machinery confirms the final quantity, packing, and unit price when quoting an order.
Who supplies PS388 Backhoe Loader?
PS388 Backhoe Loader is supplied by Jining Pinsheng Machinery Manufacturing Co., Ltd., a custom manufacturer based in Jining, Shandong, China, established in 2016.
What is the lead time for PS388 Backhoe Loader?
Jining Pinsheng Machinery quotes the lead time for PS388 Backhoe Loader per order, because it depends on configuration, quantity, and destination. Send a structured inquiry with your quantity and target date to get a committed date.
How much does PS388 Backhoe Loader cost?
Jining Pinsheng Machinery does not publish a list price for PS388 Backhoe Loader. Price depends on configuration, order quantity against the 1 set minimum, trade term, and destination port, and is quoted on inquiry.
Does Jining Pinsheng Machinery export PS388 Backhoe Loader?
Jining Pinsheng Machinery states export coverage of Worldwide, with sales support in English. Export documentation and packing are confirmed with the buyer before shipment.
