Motor Graders

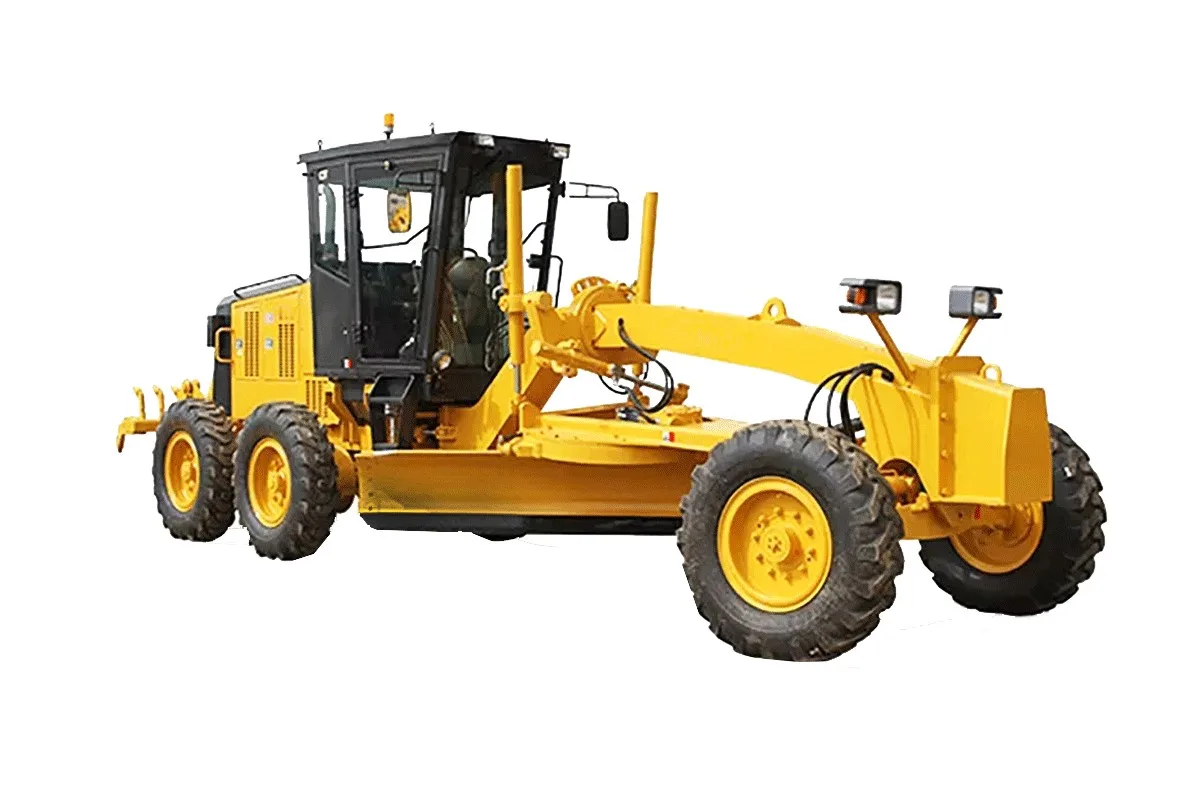

PS14 Motor Grader
PS14 Motor Grader is a PINSHENG-branded motor grader built to PINSHENG specification and supplied from Jining, Shandong. Key specifications: Operating weight 11600 · Rated power 112kW/2200 · Engine 6BTAA5.9-C150. Machine configuration, optional attachments, emission specification, and export documentation are confirmed with the buyer before shipment.
- Reference price
- Contact for price
- Minimum order
- 1 set
- Lead time
- On request
- Supplier response
- Quick responder
SPECIFICATIONS
Technical data
| Product name | PS14 | |
|---|---|---|
| Operating weight of machine | 11600 | kg |
| Wheelbase | 5812 | mm |
| Wheel tread | 2050 | mm |
| Minimum ground clearance | 430 | mm |
| Steering angle of front wheels | ±45 | ° |
| Articulated steering angle | ±25 | ° |
| Maximum traction force | 65 (f=0.75) | kN |
| Turning radius | 6600 (Outer side of front wheel) | mm |
| Maximum gradeability | 20 | ° |
| Width of shovel blade | 3660 | mm |
| Height of shovel blade | 615 | mm |
| Blade slewing angle | 360 | º |
| Blade cutting angle | 30-68 | º |
| Maximum digging depth of blade | 500 | mm |
| Length | 8036 | mm |
| Width | 2380 | mm |
| Heigh | 3170 | mm |
| Engine model | 6BTAA5.9-C150 | |
| Emission | China-II | |
| Type | Mechanical direct injection | |
| Rated power/rated speed | 112kW/2200 | kw/rpm |
| Torque converter | Single-stage single-phase three-element | |
| Transmission | Countershaft power shift | |
| Gears | Six forward and three reverse |
PRODUCT DETAIL
Detailed views
JI
SUPPLIED BY
Jining Pinsheng Machinery Manufacturing Co., Ltd.
Jining, Shandong, China · Custom Manufacturer
Public business profileCapacity on request
View supplier profileBUYER QUESTIONS
PS14 Motor Grader — buyer questions
What is the minimum order quantity for PS14 Motor Grader?
The minimum order quantity for PS14 Motor Grader is 1 set. Jining Pinsheng Machinery confirms the final quantity, packing, and unit price when quoting an order.
Who supplies PS14 Motor Grader?
PS14 Motor Grader is supplied by Jining Pinsheng Machinery Manufacturing Co., Ltd., a custom manufacturer based in Jining, Shandong, China, established in 2016.
What is the lead time for PS14 Motor Grader?
Jining Pinsheng Machinery quotes the lead time for PS14 Motor Grader per order, because it depends on configuration, quantity, and destination. Send a structured inquiry with your quantity and target date to get a committed date.
How much does PS14 Motor Grader cost?
Jining Pinsheng Machinery does not publish a list price for PS14 Motor Grader. Price depends on configuration, order quantity against the 1 set minimum, trade term, and destination port, and is quoted on inquiry.
Does Jining Pinsheng Machinery export PS14 Motor Grader?
Jining Pinsheng Machinery states export coverage of Worldwide, with sales support in English. Export documentation and packing are confirmed with the buyer before shipment.
