PS21A-3 Motor Grader

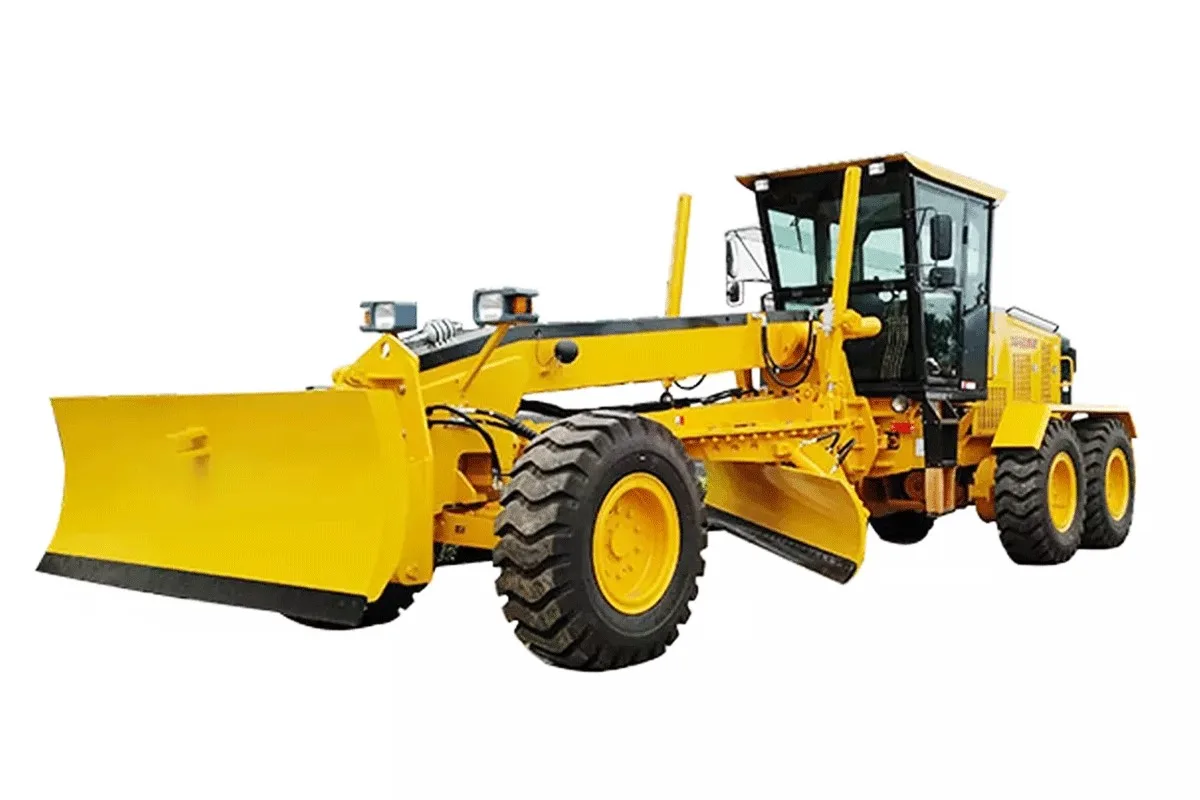

PS21A-3 Motor Grader is a PINSHENG-branded motor grader built to PINSHENG specification and supplied from Jining, Shandong. Key specifications: Operating weight 16900 · Rated power 160kW/2200rpm · Engine 6CTAA8.3-C215. Machine configuration, optional attachments, emission specification, and export documentation are confirmed with the buyer before shipment.
- Reference price
- Contact for price
- Minimum order
- 1 set
- Lead time
- On request
- Supplier response
- Quick responder
SPECIFICATIONS
Technical data
| Product name | PS21A-3 | |
|---|---|---|
| Operating weight of machine | 16900 | kg |
| Wheelbase | 6560 | mm |
| Wheel tread | 2155 | mm |
| Minimum ground clearance | 430 | mm |
| Steering angle of front wheels | ±45 | ° |
| Articulated steering angle | ±25 | ° |
| Maximum traction force | 95 | kN |
| Turning radius | 8200 (Outer side of front wheel) | mm |
| Maximum gradeability | 20 | ° |
| Width of shovel blade | 3660/3965/4270 | mm |
| Height of shovel blade | 635 | mm |
| Blade slewing angle | 360 | º |
| Blade cutting angle | 44-91 | º |
| Maximum digging depth of blade | 500 | mm |
| Length | 9430 | mm |
| Width | 2600 | mm |
| Heigh | 3400 | mm |
| Engine model | 6CTAA8.3-C215 | |
| Emission | China-II | |
| Type | Mechanical direct injection | |
| Rated power/rated speed | 160kW/2200rpm | kw/rpm |
| Torque converter | Single-stage single-phase three-element | |
| Transmission | Countershaft power shift | |
| Gears | Six forward and three reverse | |
| Service brake type | Hydraulic brake | |
| Parking brake type | Mechanical brake | |
| Brake oil pressure | 10 | MPa |
| Working pump | Constant displacement gear pump, with flow at 28ml/r | |
| Operating valve | Integral multi-way valve | |
| Pressure setting of safety valve | 16 | MPa |
| Fuel tank | 340 | L |
| Working hydraulic fuel tank | 110 | L |
| Drive axle | 25 | L |
| Balance box | 2X23 | L |
PRODUCT DETAIL
Detailed views
JI
SUPPLIED BY
Jining Pinsheng Machinery Manufacturing Co., Ltd.
Jining, Shandong, China · Custom Manufacturer
Public business profileCapacity on request
View supplier profileBUYER QUESTIONS
PS21A-3 Motor Grader — buyer questions
What is the minimum order quantity for PS21A-3 Motor Grader?
The minimum order quantity for PS21A-3 Motor Grader is 1 set. Jining Pinsheng Machinery confirms the final quantity, packing, and unit price when quoting an order.
Who supplies PS21A-3 Motor Grader?
PS21A-3 Motor Grader is supplied by Jining Pinsheng Machinery Manufacturing Co., Ltd., a custom manufacturer based in Jining, Shandong, China, established in 2016.
What is the lead time for PS21A-3 Motor Grader?
Jining Pinsheng Machinery quotes the lead time for PS21A-3 Motor Grader per order, because it depends on configuration, quantity, and destination. Send a structured inquiry with your quantity and target date to get a committed date.
How much does PS21A-3 Motor Grader cost?
Jining Pinsheng Machinery does not publish a list price for PS21A-3 Motor Grader. Price depends on configuration, order quantity against the 1 set minimum, trade term, and destination port, and is quoted on inquiry.
Does Jining Pinsheng Machinery export PS21A-3 Motor Grader?
Jining Pinsheng Machinery states export coverage of Worldwide, with sales support in English. Export documentation and packing are confirmed with the buyer before shipment.
