PSFT12T Truck Crane — Truck Cranes supplied by Jining Pinsheng Machinery
Truck Cranes

PSFT12T Truck Crane

PSFT12T Truck Crane is a PINSHENG-branded truck crane built to PINSHENG specification and supplied from Jining, Shandong. Key specifications: Rated power 118kw160hp · Engine Weichai · Overall dimensions 10500*2350*3350 · Lifting height 31.5m · Travel speed 90km/h. Machine configuration, optional attachments, emission specification, and export documentation are confirmed with the buyer before shipment.

Reference price
Contact for price
Minimum order
1 set
Lead time
On request
Supplier response
Quick responder
Final price and delivery depend on drawings, quantity, specification, and destination.

SPECIFICATIONS

Technical data

PSFT12T Truck Crane published specifications
ModelPSFT12T
Chassis modelsFOTON RUIWO
Max. loading capacity12000kg
Crane jib U type7.3m*5 section
Max. lifting height31.5m
Outrigger span6400*5000mm
Overall Dimensions10500*2350*3350
Motor Power15kw
Lifting speedDouble pumps combined
Swing speed0-3rap
Engine modelWeichai
Power118kw160hp
Tire900R20 radial tire
Reducer modelPlanetary reducer
Steering machanismHydraulic Power Steering
Braking SystemAir brake
GearboxFaust 8-speed gearbox
Weight16000kg
CabXCMG Cab
Emission StandardsChina Ⅵ
Wheelbase3900
Main hoisting mechanism12t
Auxiliary hoisting mechanism12t
Driving speed90km/h
Specifications are supplier-published and confirmed against the final configuration before order.

PRODUCT DETAIL

Detailed views

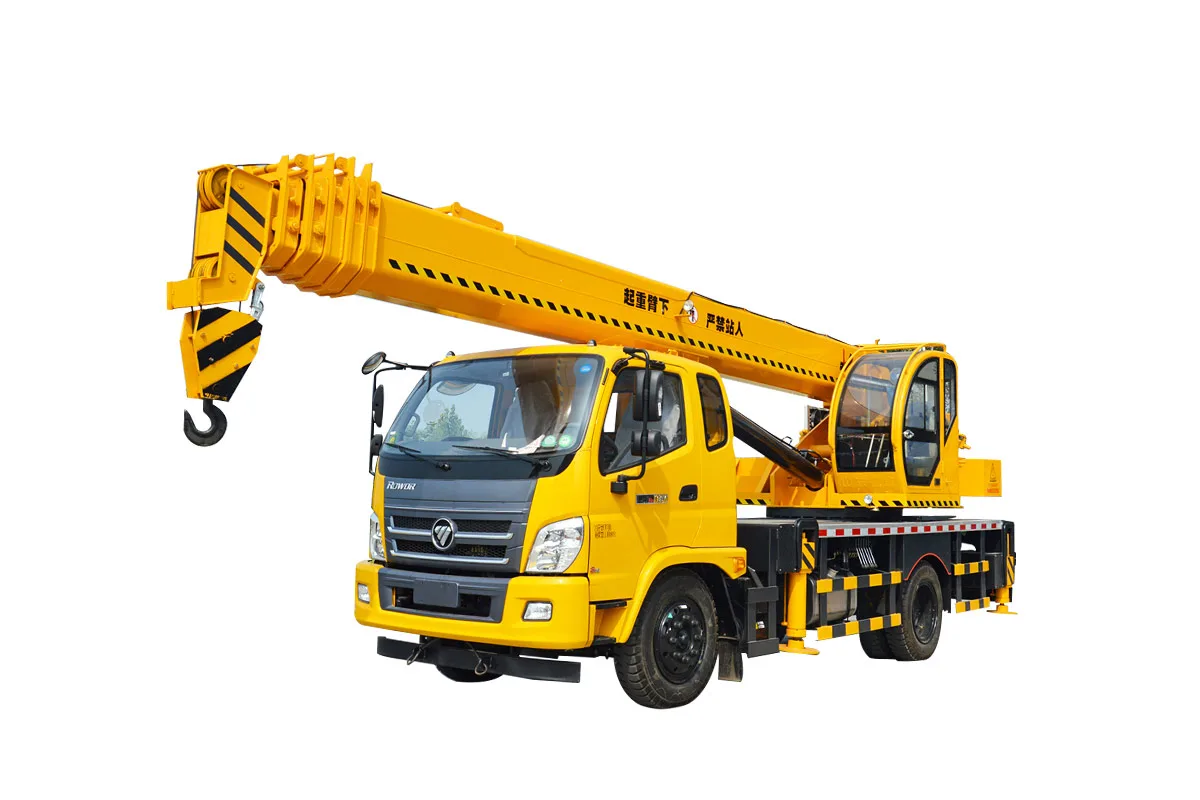

PSFT12T Truck Crane detail view 1

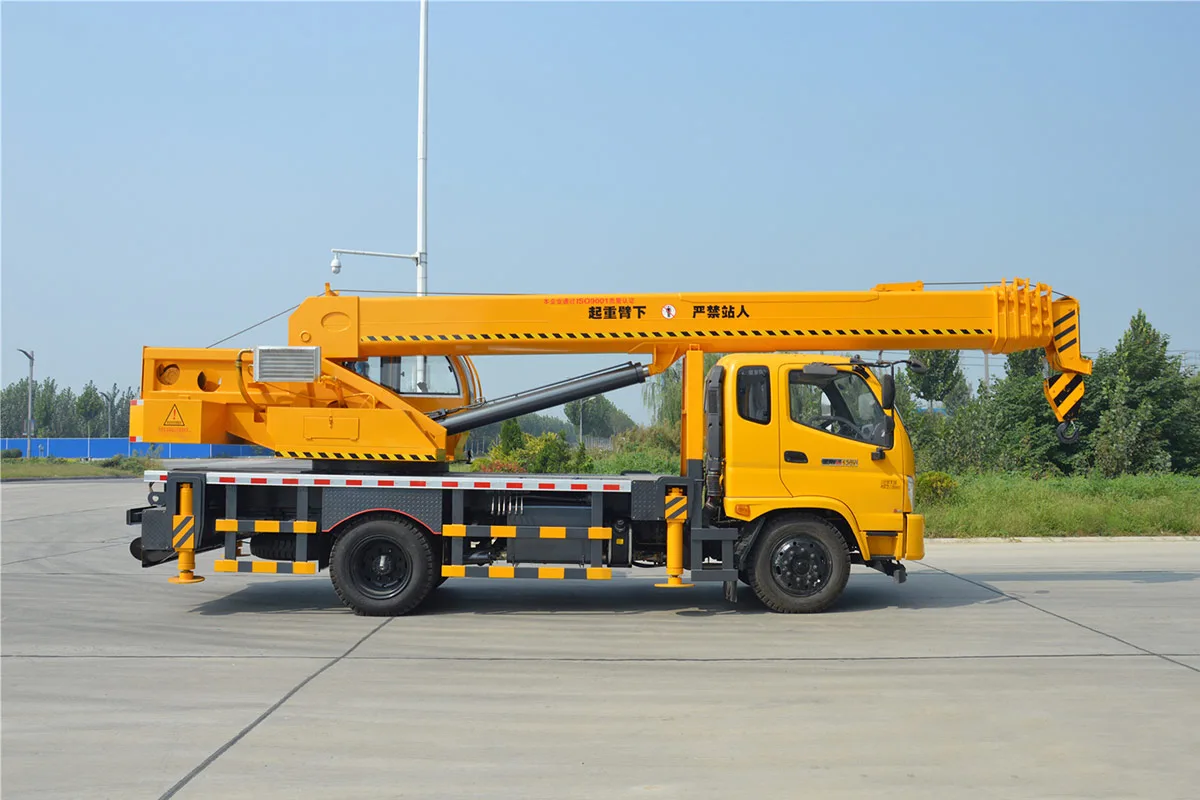

PSFT12T Truck Crane detail view 2

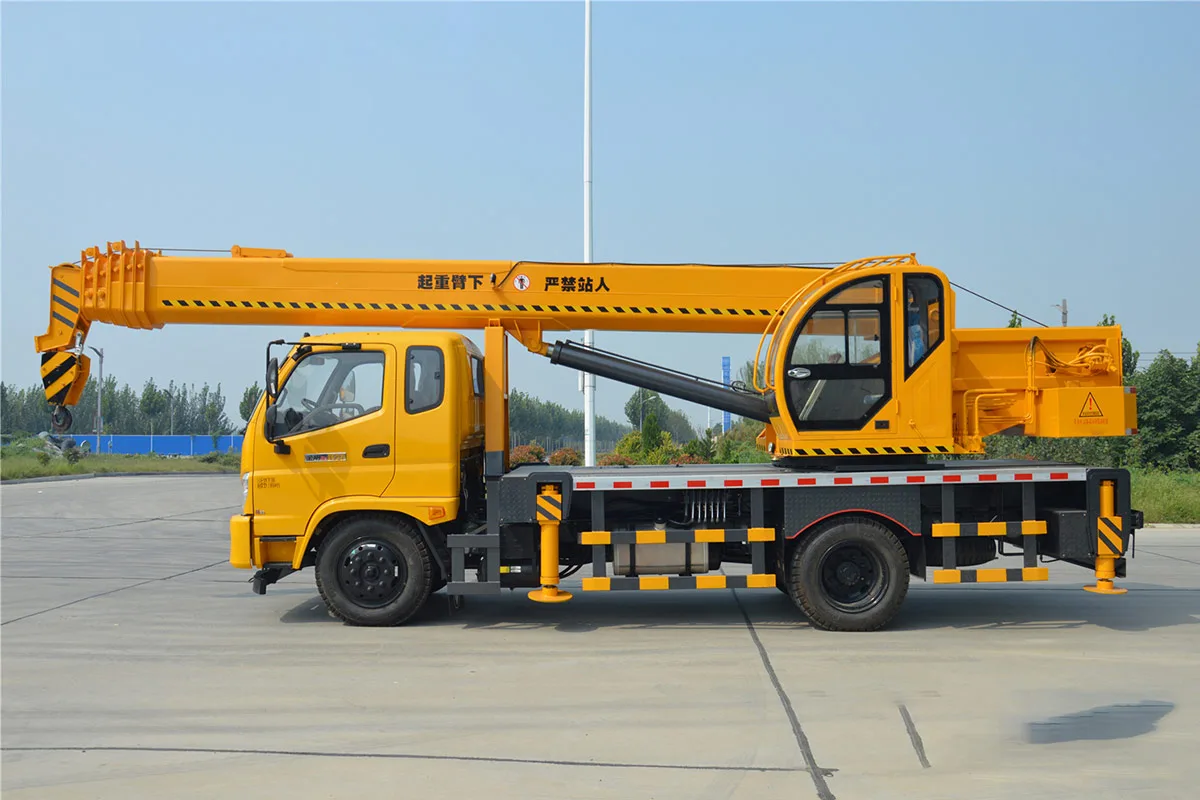

PSFT12T Truck Crane detail view 3

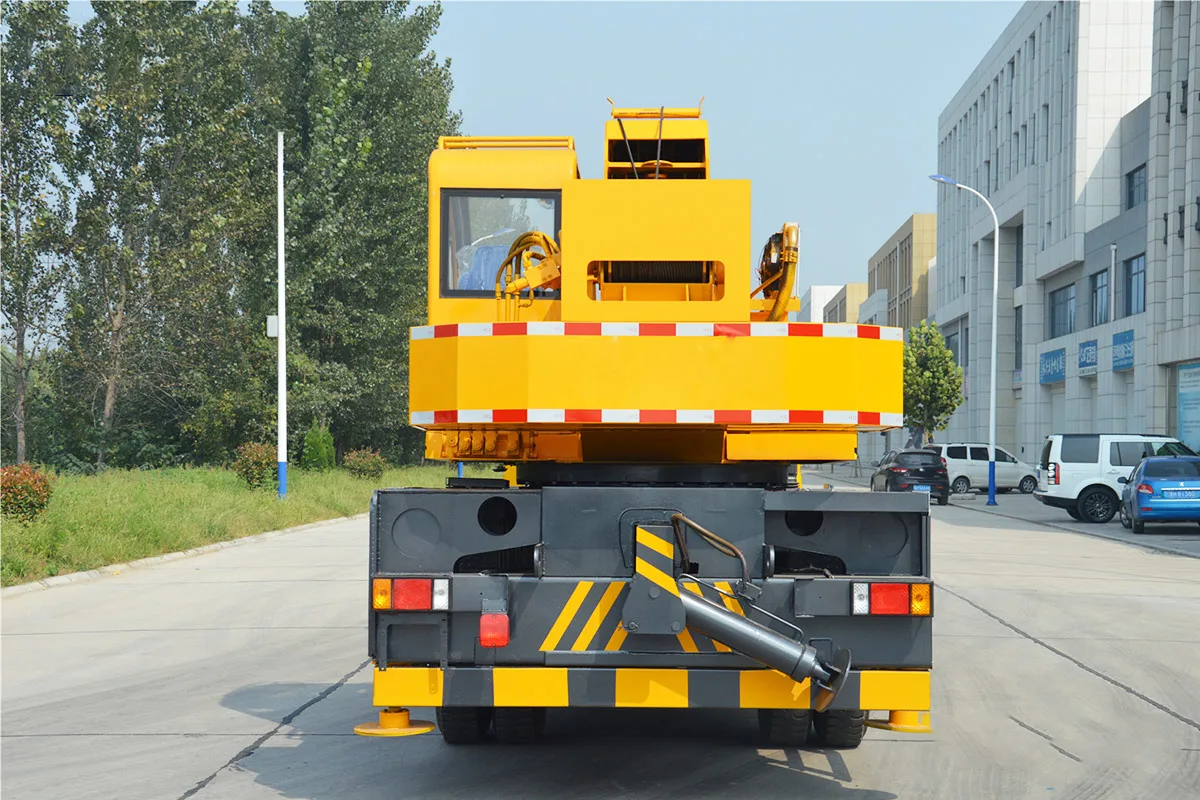

PSFT12T Truck Crane detail view 4

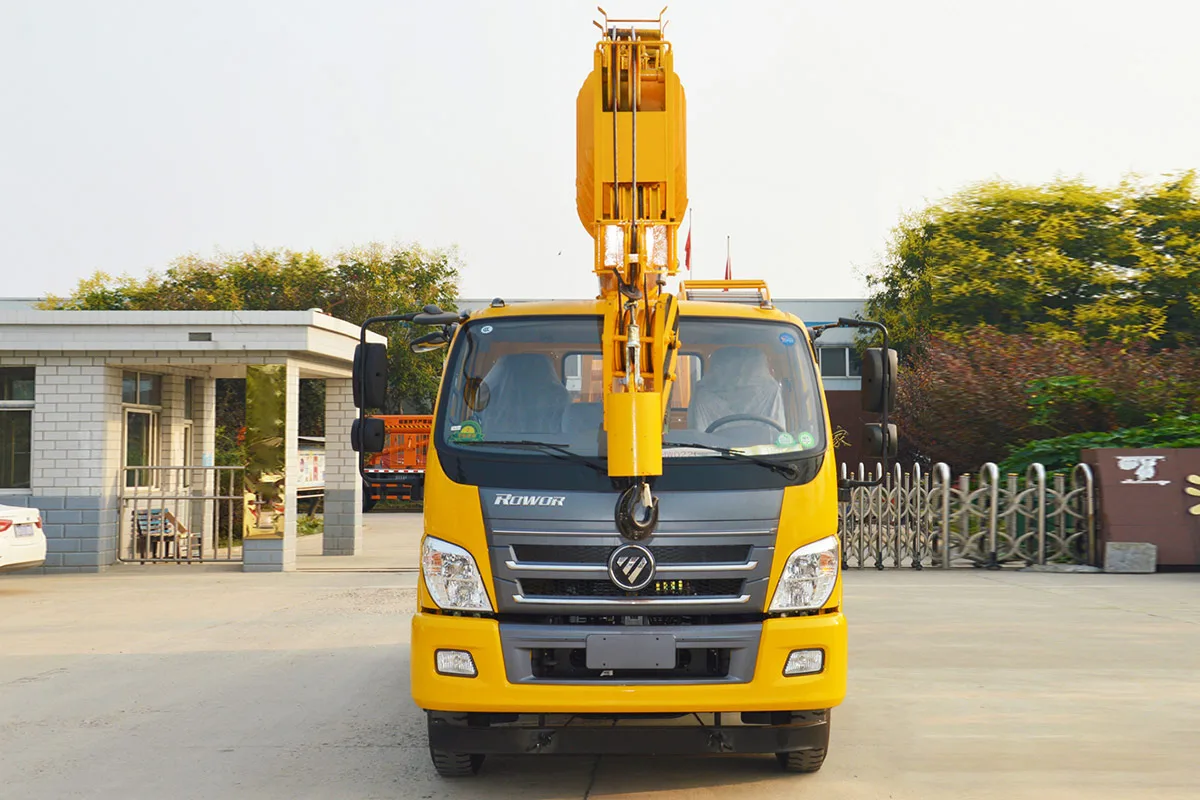

PSFT12T Truck Crane detail view 5
JI
SUPPLIED BY

Jining Pinsheng Machinery Manufacturing Co., Ltd.

Jining, Shandong, China · Custom Manufacturer

Public business profileCapacity on request
View supplier profile

BUYER QUESTIONS

PSFT12T Truck Crane — buyer questions

What is the minimum order quantity for PSFT12T Truck Crane?

The minimum order quantity for PSFT12T Truck Crane is 1 set. Jining Pinsheng Machinery confirms the final quantity, packing, and unit price when quoting an order.

Who supplies PSFT12T Truck Crane?

PSFT12T Truck Crane is supplied by Jining Pinsheng Machinery Manufacturing Co., Ltd., a custom manufacturer based in Jining, Shandong, China, established in 2016.

What is the lead time for PSFT12T Truck Crane?

Jining Pinsheng Machinery quotes the lead time for PSFT12T Truck Crane per order, because it depends on configuration, quantity, and destination. Send a structured inquiry with your quantity and target date to get a committed date.

How much does PSFT12T Truck Crane cost?

Jining Pinsheng Machinery does not publish a list price for PSFT12T Truck Crane. Price depends on configuration, order quantity against the 1 set minimum, trade term, and destination port, and is quoted on inquiry.

Does Jining Pinsheng Machinery export PSFT12T Truck Crane?

Jining Pinsheng Machinery states export coverage of Worldwide, with sales support in English. Export documentation and packing are confirmed with the buyer before shipment.
