PSKJ12T Truck Crane — Truck Cranes supplied by Jining Pinsheng Machinery
Truck Cranes

PSKJ12T Truck Crane

PSKJ12T Truck Crane is a PINSHENG-branded truck crane built to PINSHENG specification and supplied from Jining, Shandong. Key specifications: Rated power 125kw 170hp / 102kw 140hp · Engine Yunnei4110 / Yunnei4108 · Overall dimensions 10045*2220*3395 / / · Lifting height 30m / 31m · Travel speed 90km/h. Machine configuration, optional attachments, emission specification, and export documentation are confirmed with the buyer before shipment.

Reference price
Contact for price
Minimum order
1 set
Lead time
On request
Supplier response
Quick responder
Final price and delivery depend on drawings, quantity, specification, and destination.

SPECIFICATIONS

Technical data

PSKJ12T Truck Crane published specifications
ModelPSKJ12T / PSKJS12T
Chassis modelsKAIJIE3900 / KAIJIE15600
Max. loading capacity12000kg
Crane jib U type7.3m*5 section (rope inside)
Max. lifting height30m / 31m
Outrigger span6400*5000 / 6500*5000mm
Overall Dimensions10045*2220*3395 / /
Motor Power15kw
Lifting speedDouble pumps combined
Swing speed0-3rap
Engine modelYunnei4110 / Yunnei4108
Power125kw 170hp / 102kw 140hp
Tire825-20 radial tire / 900-20 radial tire
Reducer modelPlanetary reducer
Steering machanismHydraulic Power Steering
Braking SystemAir brake
GearboxWanliyang 6-speed gearbox / Wanliyang gearbox
Weight14500kg / 15600kg
CabXCMG Cab
Emission StandardsChina Ⅵ
Wheelbase3900 / 4200
Main hoisting mechanism12t
Auxiliary hoisting mechanism12t
Driving speed90km/h
Specifications are supplier-published and confirmed against the final configuration before order.

PRODUCT DETAIL

Detailed views

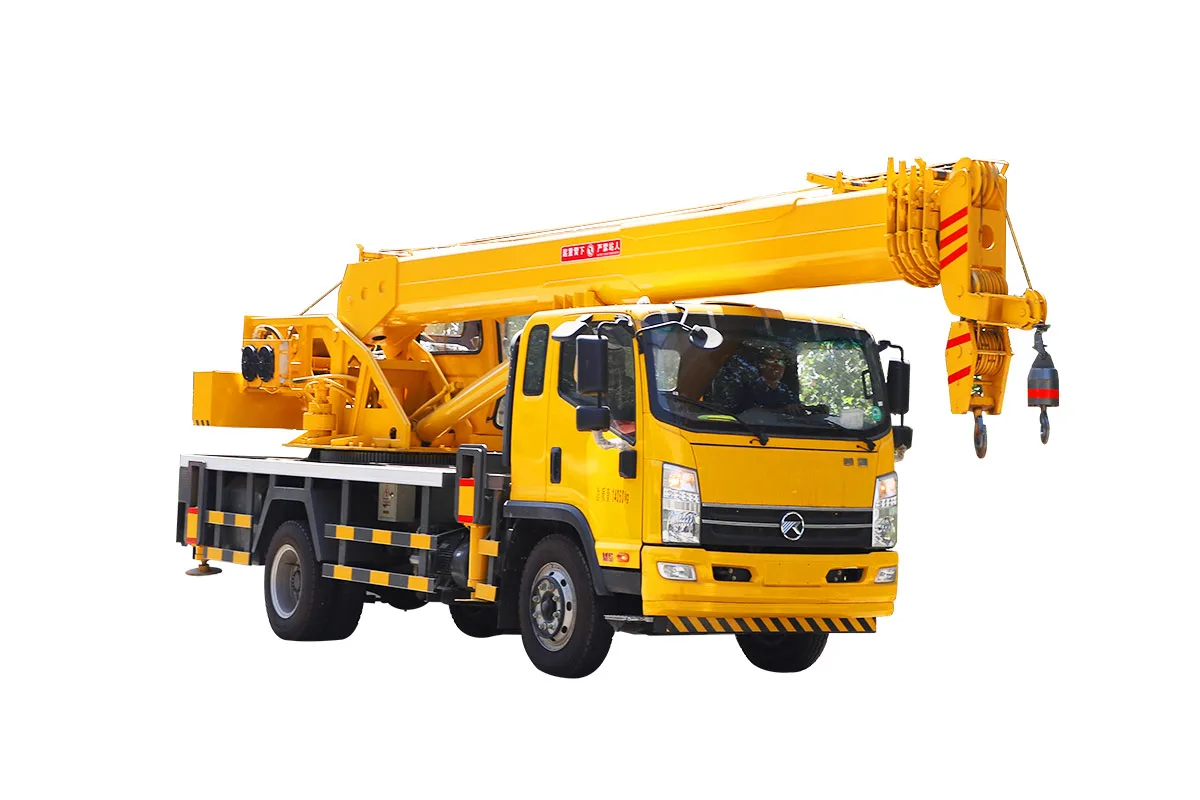

PSKJ12T Truck Crane detail view 1

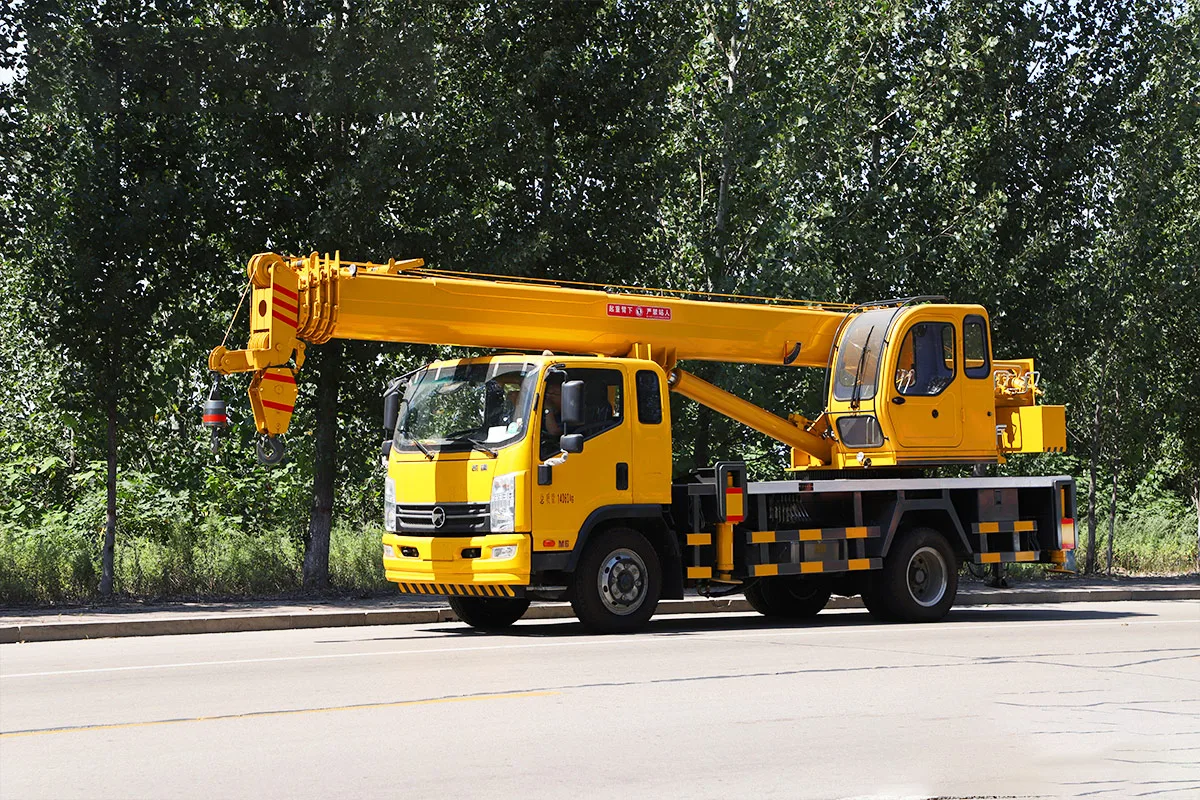

PSKJ12T Truck Crane detail view 2

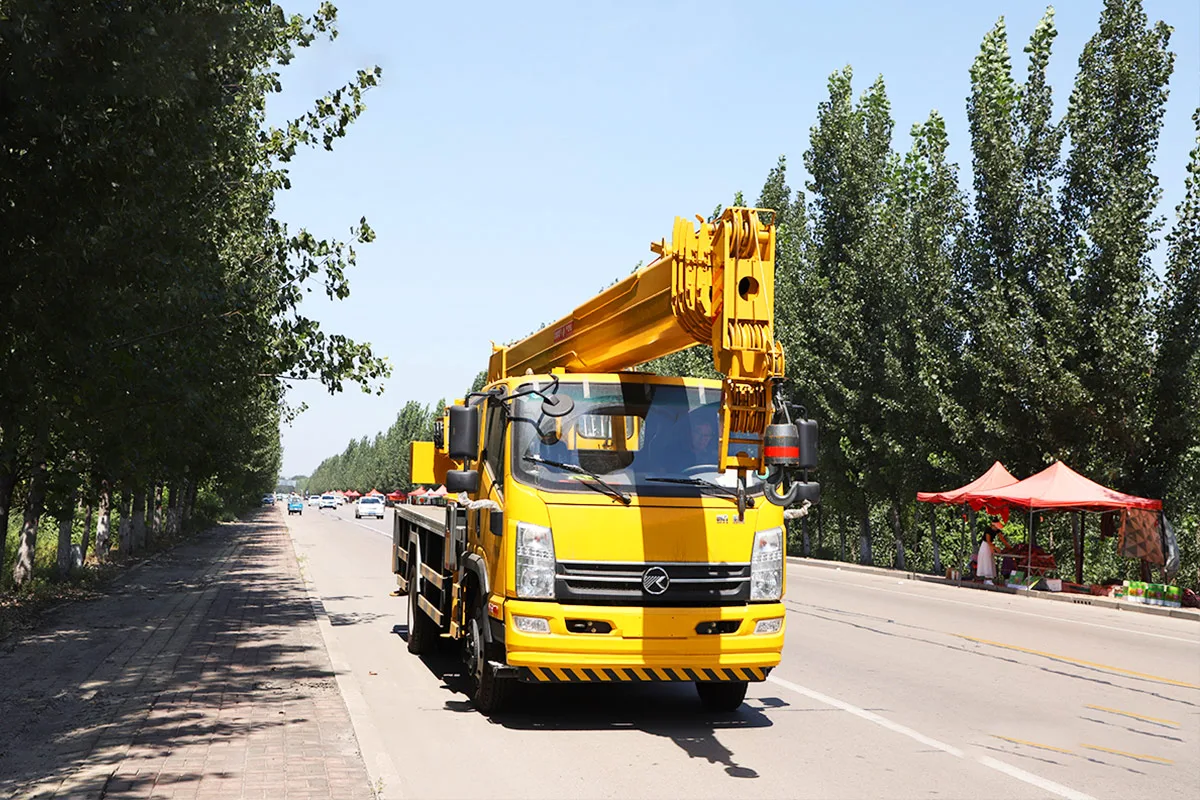

PSKJ12T Truck Crane detail view 3

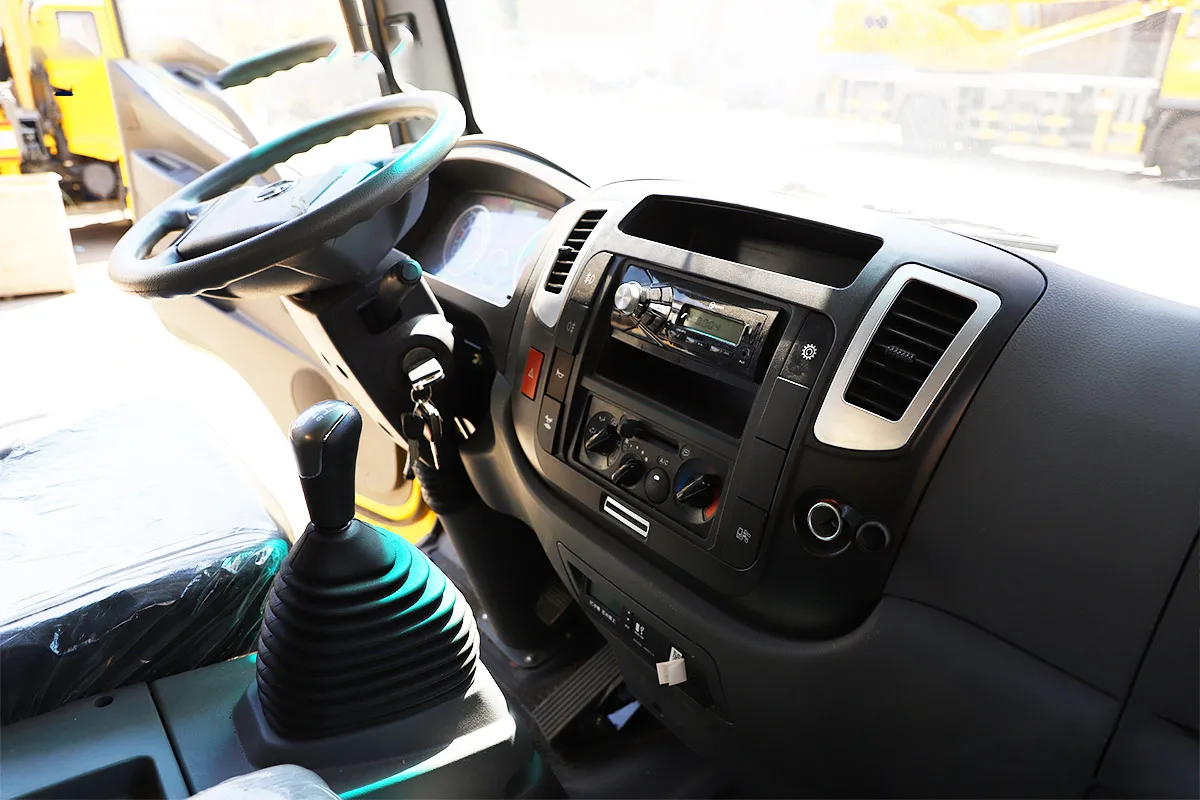

PSKJ12T Truck Crane detail view 4

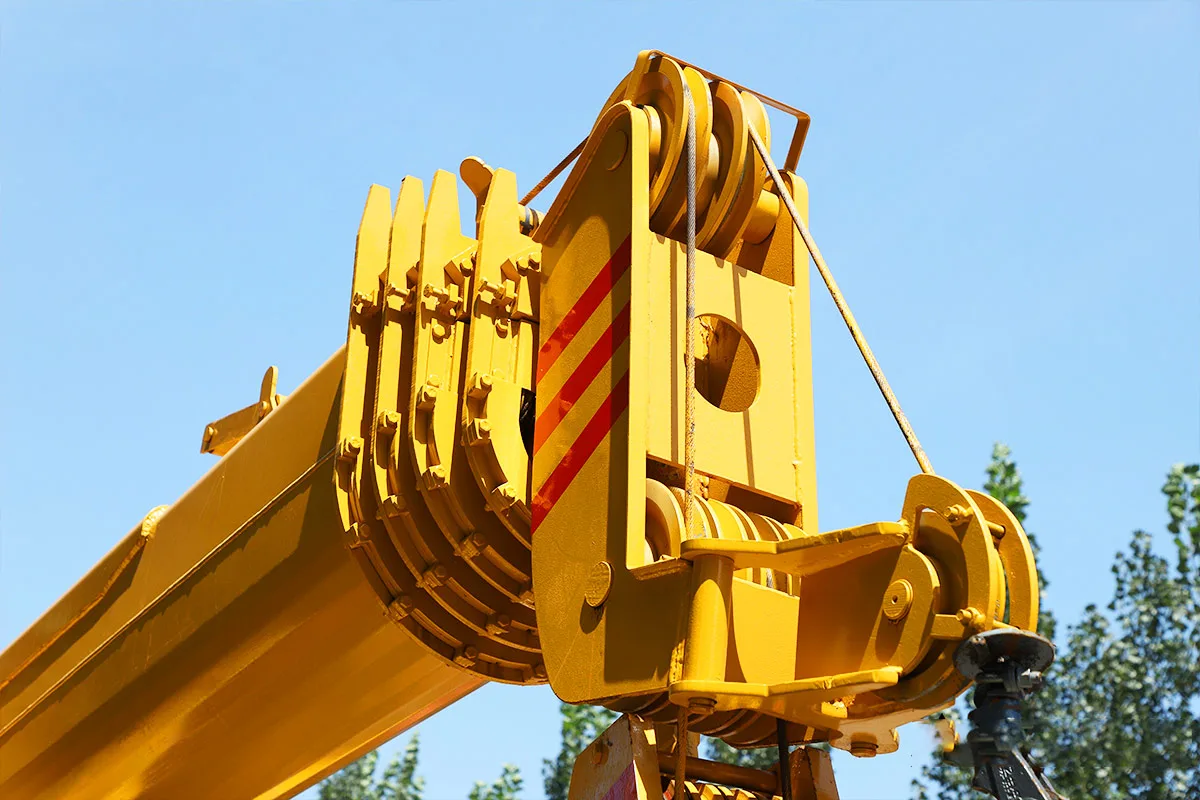

PSKJ12T Truck Crane detail view 5

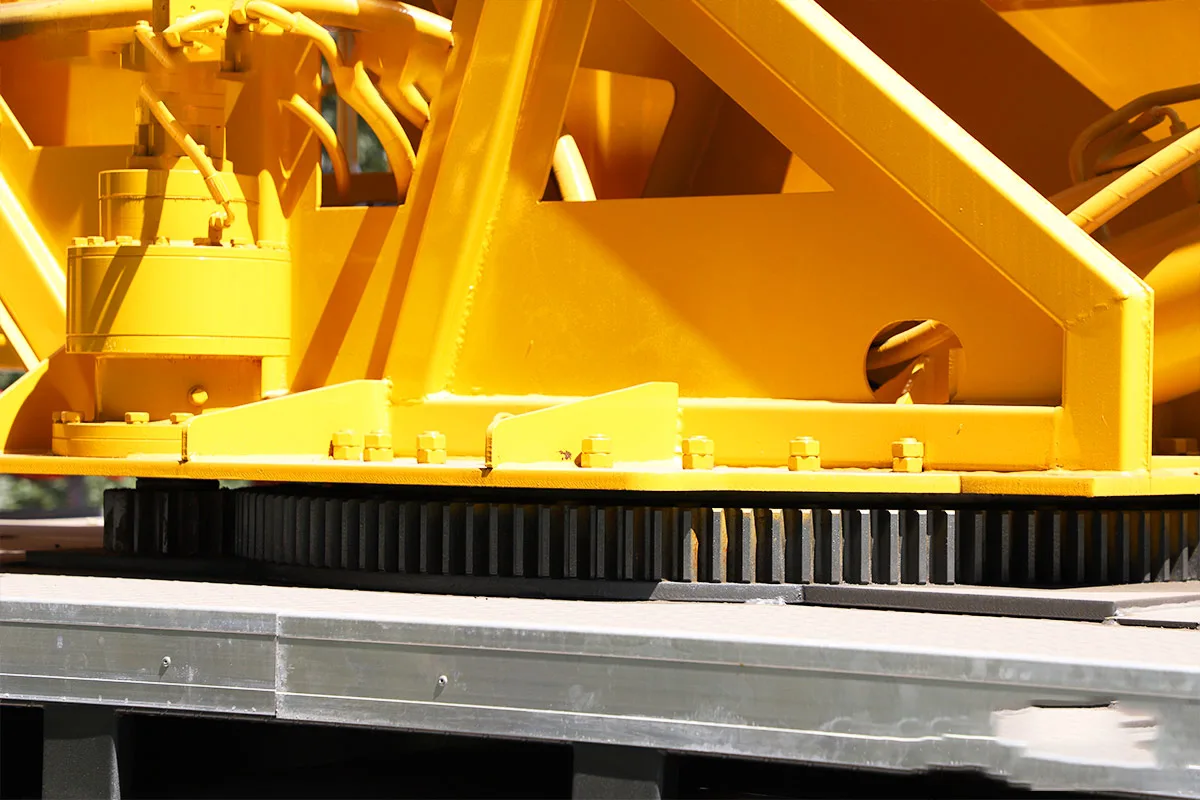

PSKJ12T Truck Crane detail view 6
JI
SUPPLIED BY

Jining Pinsheng Machinery Manufacturing Co., Ltd.

Jining, Shandong, China · Custom Manufacturer

Public business profileCapacity on request
View supplier profile

BUYER QUESTIONS

PSKJ12T Truck Crane — buyer questions

What is the minimum order quantity for PSKJ12T Truck Crane?

The minimum order quantity for PSKJ12T Truck Crane is 1 set. Jining Pinsheng Machinery confirms the final quantity, packing, and unit price when quoting an order.

Who supplies PSKJ12T Truck Crane?

PSKJ12T Truck Crane is supplied by Jining Pinsheng Machinery Manufacturing Co., Ltd., a custom manufacturer based in Jining, Shandong, China, established in 2016.

What is the lead time for PSKJ12T Truck Crane?

Jining Pinsheng Machinery quotes the lead time for PSKJ12T Truck Crane per order, because it depends on configuration, quantity, and destination. Send a structured inquiry with your quantity and target date to get a committed date.

How much does PSKJ12T Truck Crane cost?

Jining Pinsheng Machinery does not publish a list price for PSKJ12T Truck Crane. Price depends on configuration, order quantity against the 1 set minimum, trade term, and destination port, and is quoted on inquiry.

Does Jining Pinsheng Machinery export PSKJ12T Truck Crane?

Jining Pinsheng Machinery states export coverage of Worldwide, with sales support in English. Export documentation and packing are confirmed with the buyer before shipment.
