PSQY12T Self-made Truck Crane — Truck Cranes supplied by Jining Pinsheng Machinery
Truck Cranes

PSQY12T Self-made Truck Crane

PSQY12T Self-made Truck Crane is a PINSHENG-branded truck crane built to PINSHENG specification and supplied from Jining, Shandong. Key specifications: Rated power 100kw 140hp · Engine 4105 · Overall dimensions 8.5m*2.1m*3.05m · Lifting height 30m、35m. Machine configuration, optional attachments, emission specification, and export documentation are confirmed with the buyer before shipment.

Reference price
Contact for price
Minimum order
1 set
Lead time
On request
Supplier response
Quick responder
Final price and delivery depend on drawings, quantity, specification, and destination.

SPECIFICATIONS

Technical data

PSQY12T Self-made Truck Crane published specifications
ModelPSQY12T
Weight13000kg
Overall Dimensions8.5m*2.1m*3.05m
Wheelbase2.8m/3.1m (optional)
Max. loading capacity12000kg
Max. lifting height30m、35m
Engine model4105
Gearbox model6-speed
Power100kw 140hpkw hp
Emission StandardsChina Ⅲ
Braking SystemAir brake
Steering machanismHydraulic Power Steering
Boom section number5m X 8/6m X 8
Main hoisting mechanism12T
Outrigger6 full hydraulic outriggers (single section)
Outrigger span6500mmmm
Protective devicetwo way hydraulic control
Number of work lights2
Hydraulic pumpsingle pump
Oil and electricity dual use11kw IP6 pole motor
Tire825-20
Specifications are supplier-published and confirmed against the final configuration before order.

PRODUCT DETAIL

Detailed views

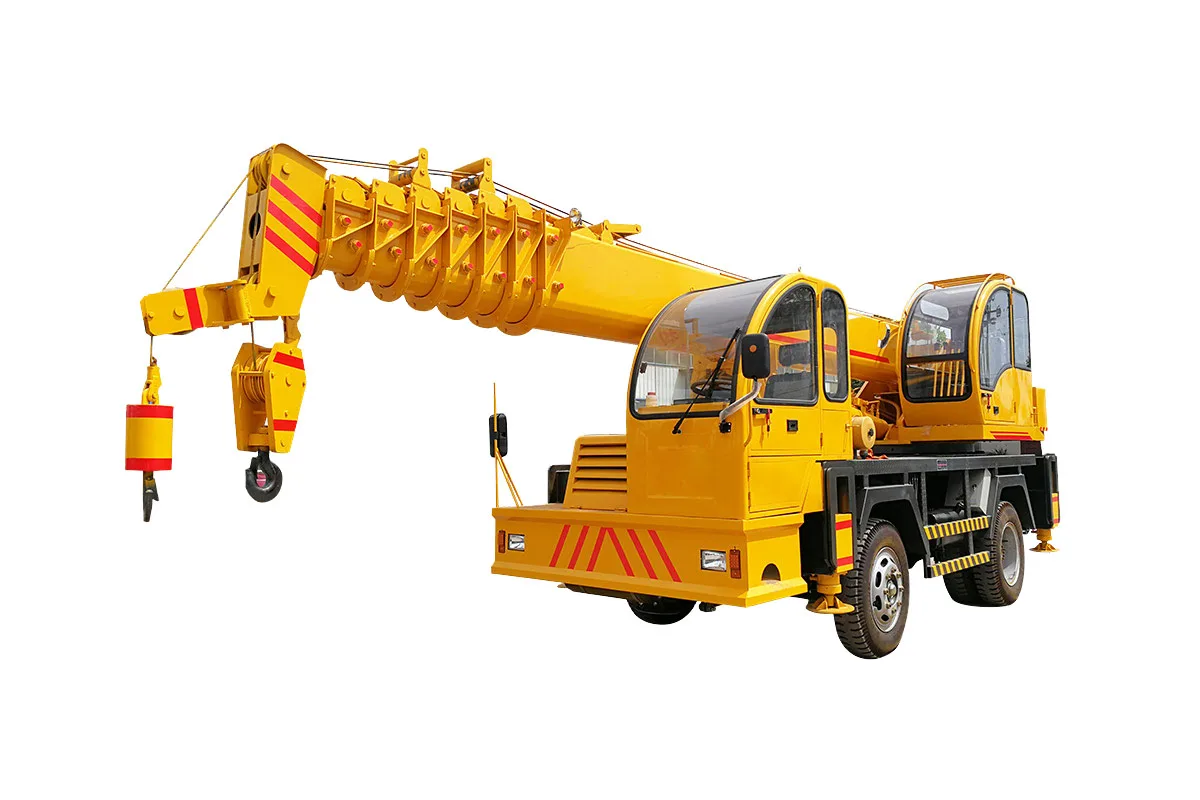

PSQY12T Self-made Truck Crane detail view 1

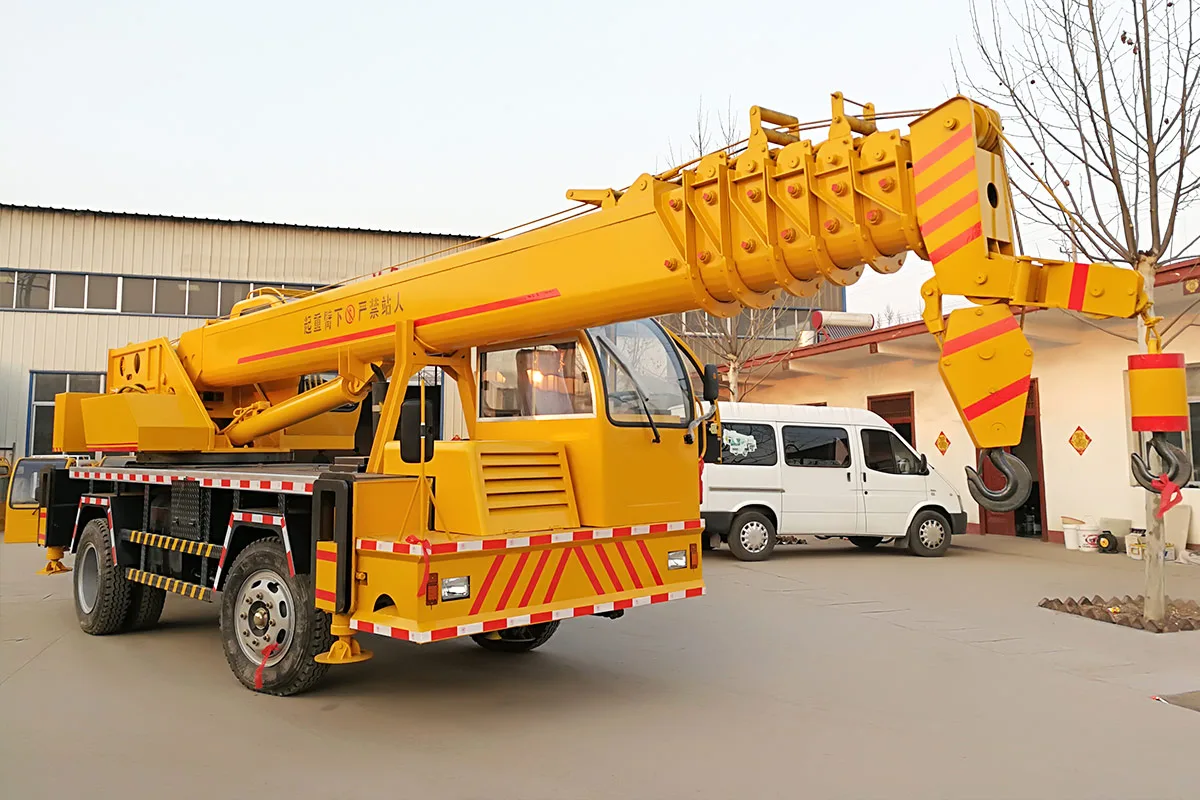

PSQY12T Self-made Truck Crane detail view 2

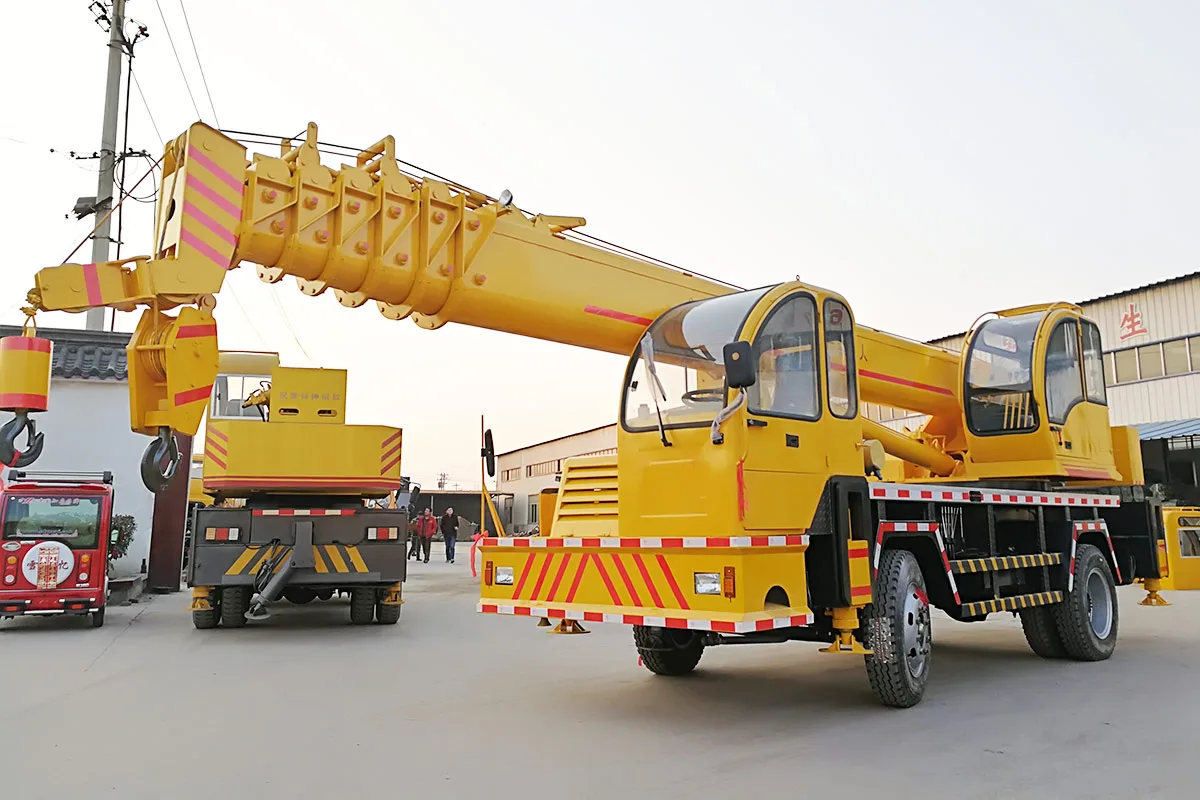

PSQY12T Self-made Truck Crane detail view 3

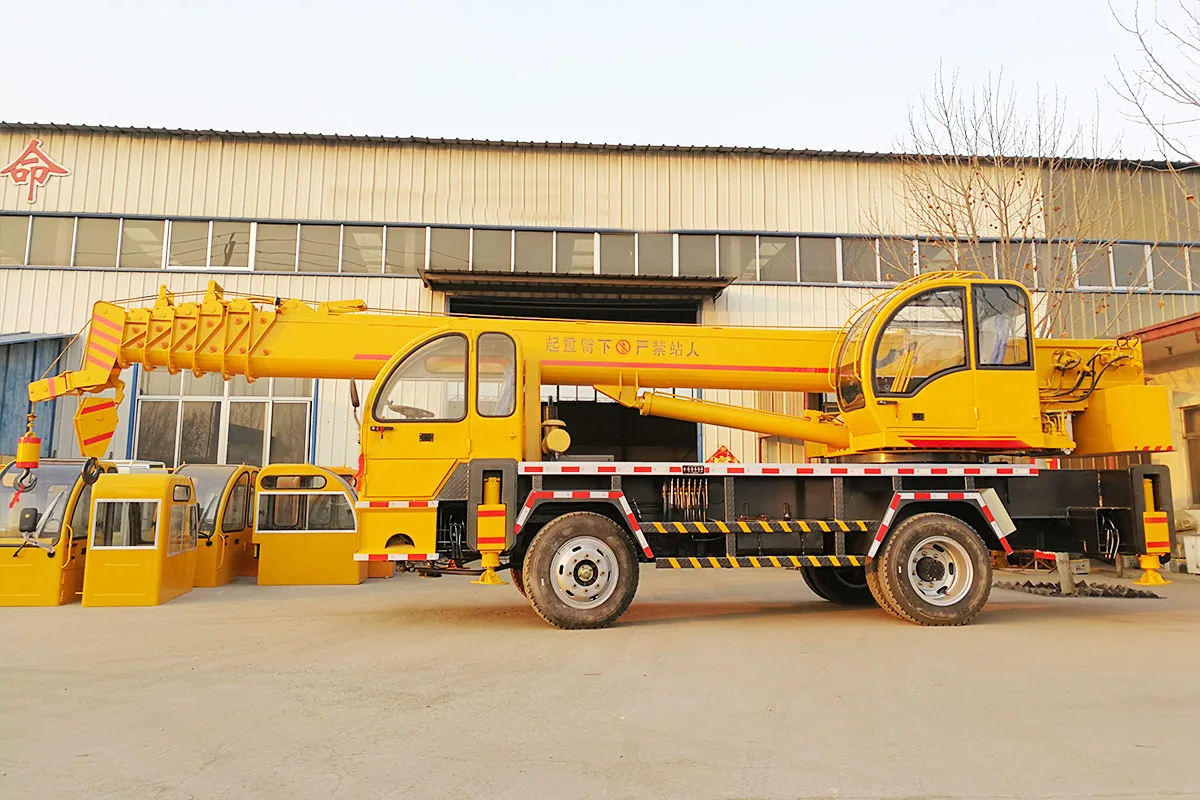

PSQY12T Self-made Truck Crane detail view 4

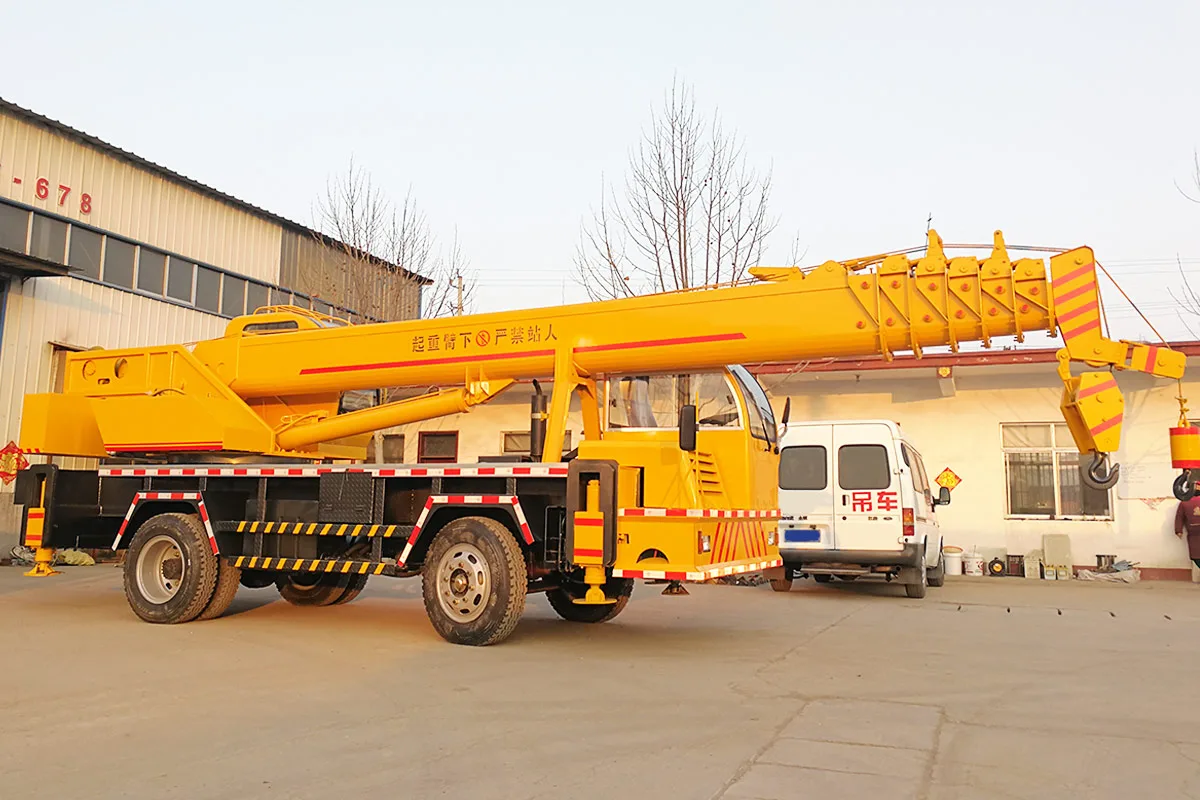

PSQY12T Self-made Truck Crane detail view 5

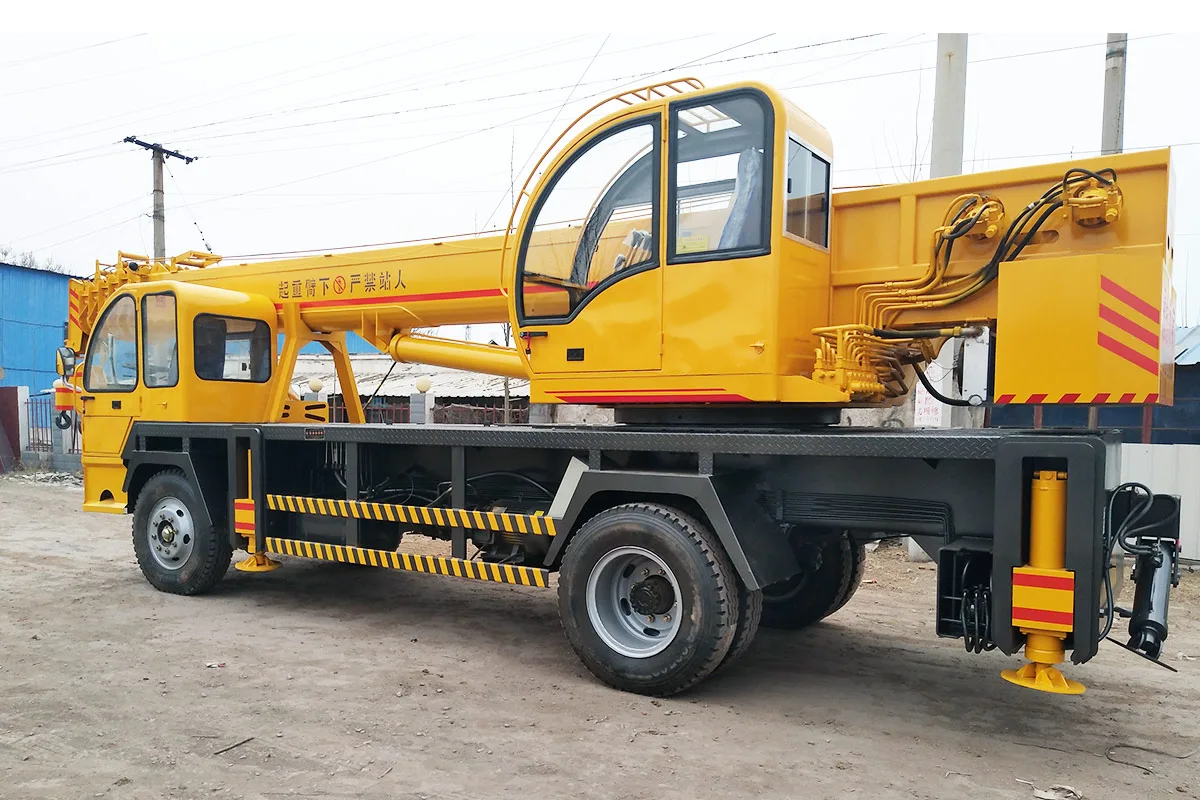

PSQY12T Self-made Truck Crane detail view 6
JI
SUPPLIED BY

Jining Pinsheng Machinery Manufacturing Co., Ltd.

Jining, Shandong, China · Custom Manufacturer

Public business profileCapacity on request
View supplier profile

BUYER QUESTIONS

PSQY12T Self-made Truck Crane — buyer questions

What is the minimum order quantity for PSQY12T Self-made Truck Crane?

The minimum order quantity for PSQY12T Self-made Truck Crane is 1 set. Jining Pinsheng Machinery confirms the final quantity, packing, and unit price when quoting an order.

Who supplies PSQY12T Self-made Truck Crane?

PSQY12T Self-made Truck Crane is supplied by Jining Pinsheng Machinery Manufacturing Co., Ltd., a custom manufacturer based in Jining, Shandong, China, established in 2016.

What is the lead time for PSQY12T Self-made Truck Crane?

Jining Pinsheng Machinery quotes the lead time for PSQY12T Self-made Truck Crane per order, because it depends on configuration, quantity, and destination. Send a structured inquiry with your quantity and target date to get a committed date.

How much does PSQY12T Self-made Truck Crane cost?

Jining Pinsheng Machinery does not publish a list price for PSQY12T Self-made Truck Crane. Price depends on configuration, order quantity against the 1 set minimum, trade term, and destination port, and is quoted on inquiry.

Does Jining Pinsheng Machinery export PSQY12T Self-made Truck Crane?

Jining Pinsheng Machinery states export coverage of Worldwide, with sales support in English. Export documentation and packing are confirmed with the buyer before shipment.
